Drop Test Machines for Packaging and Product Testing
TestLabs supplies drop test machines in Malaysia for evaluating the impact resistance of packaged goods and selected finished products during handling and transportation. Available configurations include single-wing, double-wing, zero-drop, large-scale, and small-electronic-device drop testers. We can review your product type, specimen size, weight, required drop height, test method, power supply, and delivery location before recommending a suitable configuration.
✳︎
Local Technical Support
✳︎
1 Year Local Warranty
✳︎
Free Training
✳︎ Local Technical Support ✳︎ 1 Year Local Warranty ✳︎ Free Training
Applications and buyer outcomes

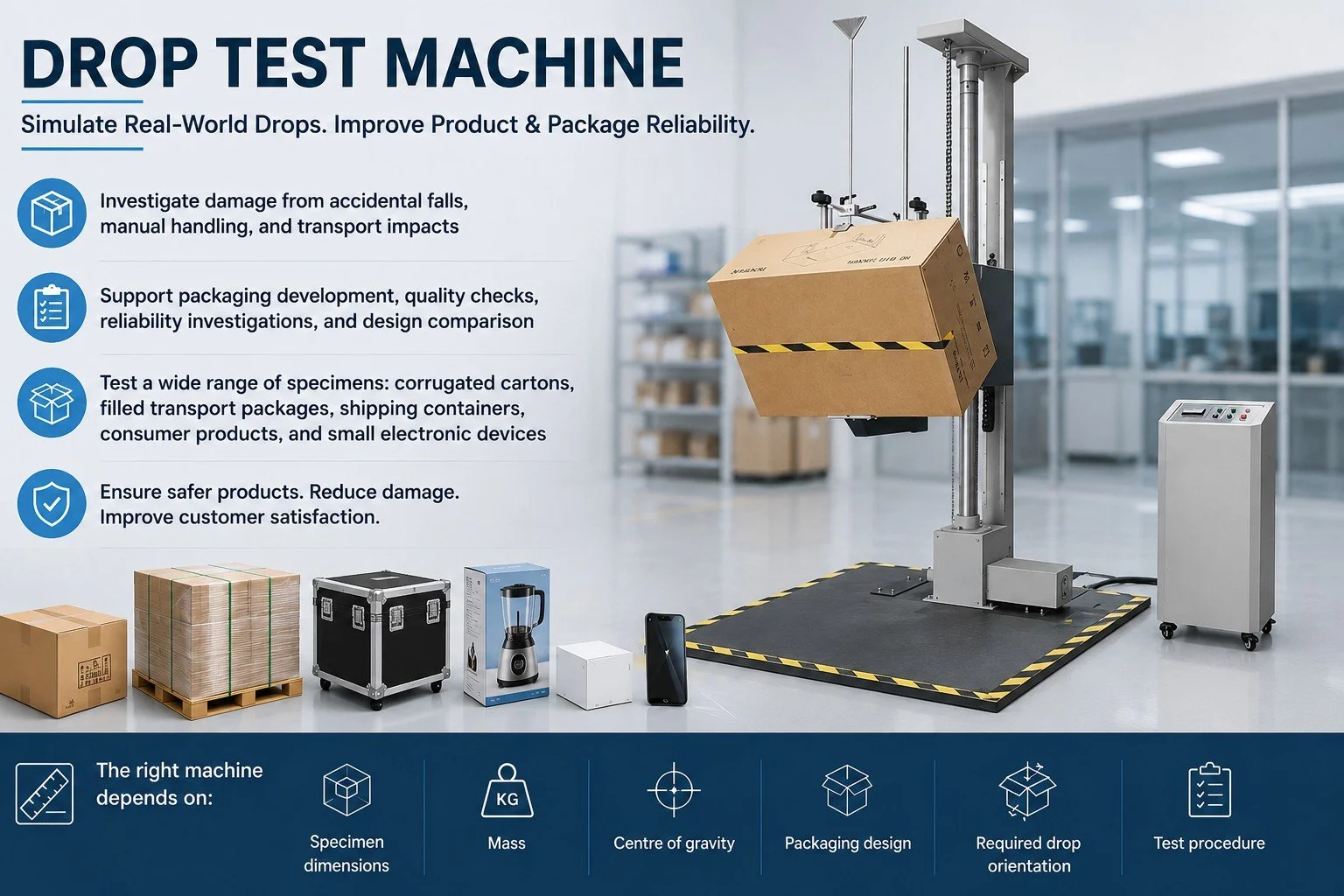

A drop test machine helps a product or packaging team investigate damage caused by accidental falls, manual handling, and transport impacts. It can support packaging-development work, incoming or outgoing quality checks, product reliability investigations, and comparison of package designs. Typical enquiries include corrugated cartons, filled transport packages, shipping containers, consumer products, and small electronic devices. The correct machine type depends on the specimen’s dimensions, mass, centre of gravity, packaging design, required drop orientation, and test procedure.
Installation support
Site installation can be arranged for the supplied equipment, subject to project scope and location.
Operator training
Training can be provided so your team understands the basic operation and agreed test setup.
After-sales support
Contact TestLabs for technical support and assistance after delivery.

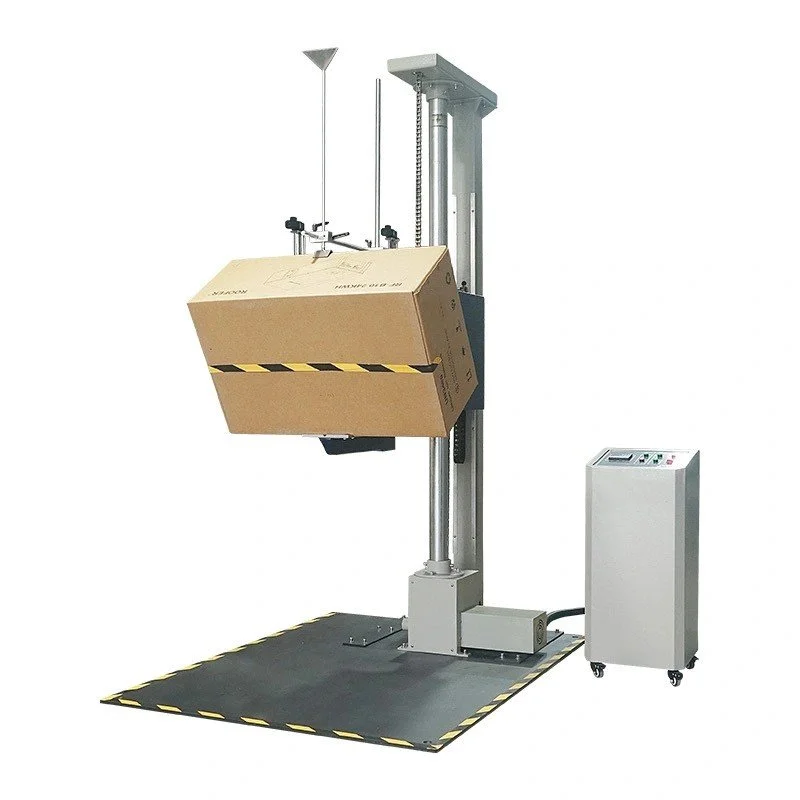

Drop test equipment range
TestLabs can help narrow the selection based on the test objective. A free-fall package test, a zero-drop test for heavier or larger packages, a multi-orientation finished-product test, and a small-electronic-device test may require different mechanisms and working ranges. Send the product and test details listed in the quotation section so the final configuration can be checked before ordering.

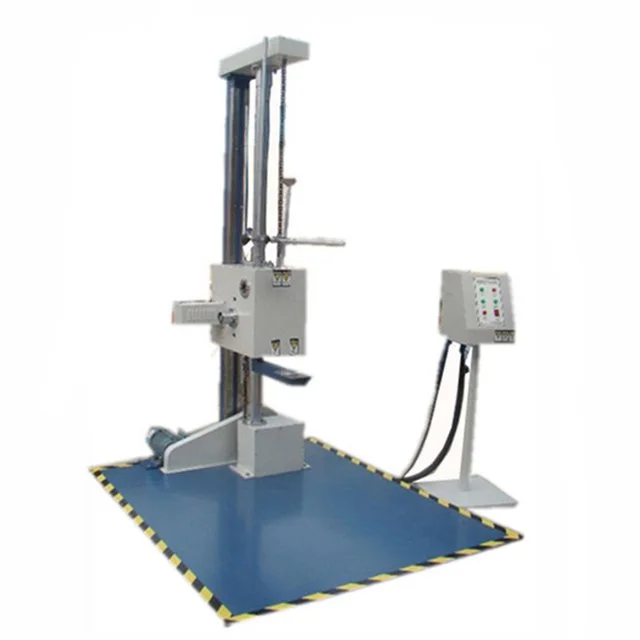

Single Wing Drop Tester

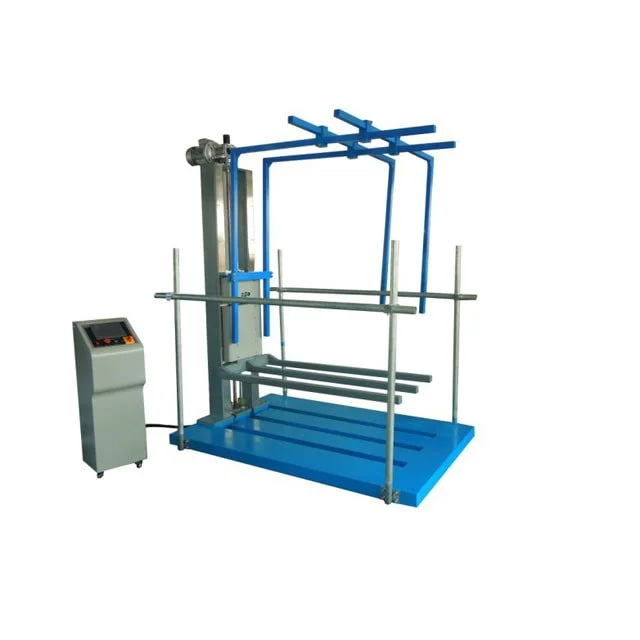

Zero-drop Impact Tester

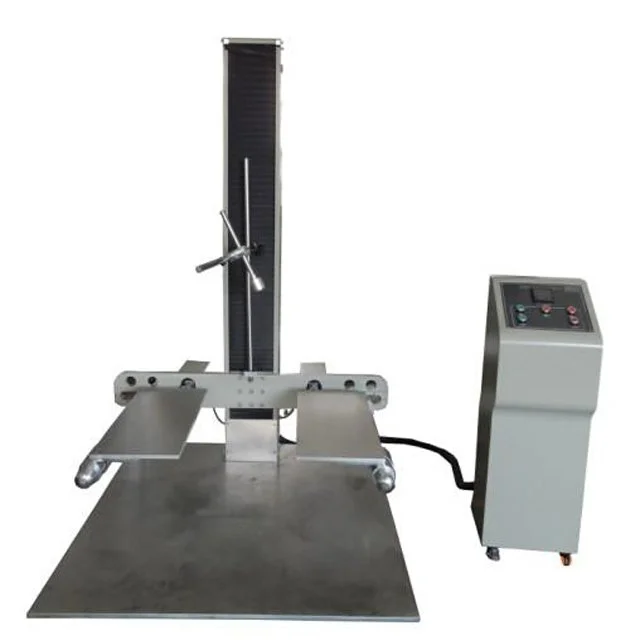

Double Wings Drop Tester

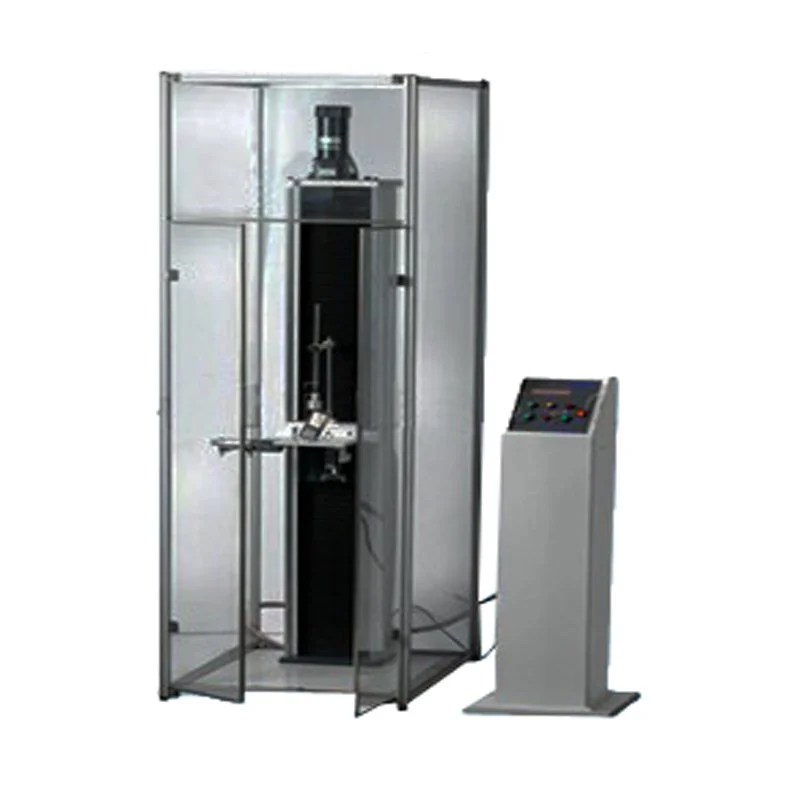

Digital Device Drop Tester

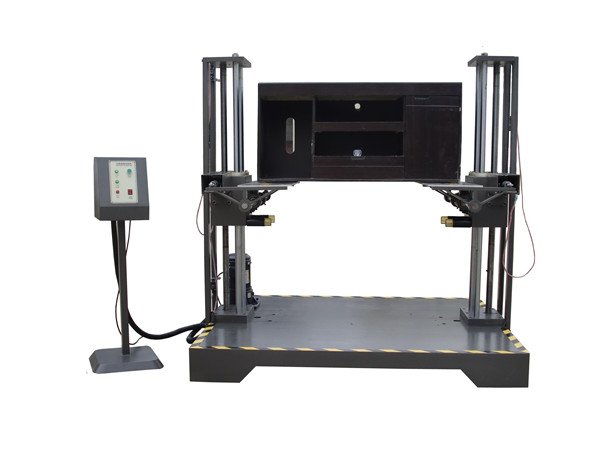

Large Scale Drop Test Machine
| Configuration | Typical use described for this page | Selection considerations |
|---|---|---|
| Single Wing Drop Tester | Package impact testing during handling and transportation. | Review required drop height, package size, package mass, impact panel, and drop orientation. |
| Zero-Drop Impact Tester | Zero-drop testing for cubic package parts and selected heavier or larger packages. | Confirm the package mass, working envelope, release method, and customer test procedure. |
| Double Wing Drop Tester | Drop or fall testing of finished products across relevant faces and orientations. | Confirm the product geometry, maximum specimen size and weight, wing or panel area, and required controls. |
| Digital Device Drop Tester | Free-drop testing for small electronic devices and related products. | Confirm face, edge, and corner-drop requirements, specimen size, weight, pneumatic requirements, and electronics test method. |
| Large-Scale Drop Test Machine | Large-package or transport-packaging impact evaluation where a larger working area is required. | Confirm package dimensions, mass, panel or wing arrangement, handling method, site space, and power supply. |
Configuration note: The descriptions above summarize the current TestLabs page. Final equipment selection, dimensions, load limits, test method, and safety requirements must be confirmed against the customer’s test plan and quotation.
| Configuration | Technical values | Standards or method reference |
|---|---|---|
| Single Wing Drop Test Machine |
Drop height: 300–1500 mm Display: digital display Maximum package weight: 60 kg Maximum package size (L × W × H): 1000 × 700 × 1000 mm Dropping panel (L × W): 1700 × 1400 mm Swing size: 290 × 240 × 8 mm Dropping deviation: ±10 mm Drop horizon deviation: less than 1° Outside size (L × W × H): 1700 × 1400 × 2215 mm Chamber size (L × W × H): 350 × 350 × 1100 mm Weight: 550 kg Power: AC 380 V, 50 Hz Transmission: electric transmission |
GB/T 4857.5; ISO 2248; JIS Z0202; ASTM D5276 |
| Double Wings Drop Test Machine |
Model shown: HD-520B Digital Double Wings Drop Tester Display: digital height indicator (optional) Drop height: 400–1300 mm Single-wing area (W × L): 350 × 760 mm Drop panel area (W × L): 1200 × 1400 mm Maximum specimen size (L × W × H): 1000 × 1000 × 800 mm Maximum specimen weight: 640 kg Outside dimension (L × W × H): 1400 × 1200 × 1940 mm Control box size (L × W × H): 350 × 350 × 1100 mm Weight: 400 kg Power: AC 220 V, 50 Hz Transmission: electric transmission Horsepower: 1/2 HP |
ISO 2248; JIS Z0202-87; GB/T 4857.5-92 |
| Large-Scale Double Wings Drop Test Machine |
Model shown: HD-520C Display: scales indicate Drop height: 400–1100 mm Wing area (W × L): 300 × 1000 mm Drop panel area (W × L): 1500 × 1100 mm Maximum specimen size (L × W × H): 1000 × 1500 × 800 mm Maximum specimen weight: 120 kg External size (L × W × H): 1500 × 1300 × 1600 mm Control chamber size (L × W × H): 350 × 350 × 1100 mm Machine weight: 800 kg Power: AC 220 V, 50 Hz Transmission: electric drive |
ISO 2248; JIS Z0202-87; GB/T 4857.5-92 |
| Zero Drop-Off Tester |
Drop height: 0–1000 mm, adjustable as stated on the current page Display: PLC display Maximum package weight: 600 kg Maximum package size (L × W × H): 1200 × 1200 × 1200 mm Dropping panel size: according to sample size |
Test method shown: ISTA; ASTM D5276 |
| Small Electronic Devices Drop Tester |
Drop height: 300–1500 mm Display: digital Height deviation: ±10 mm Maximum specimen weight: 10 kg Load size: 200 × 200 × 12 mm Impact size: 550 × 650 × 20 mm Machine size: 650 × 560 × 2150 mm Control chamber size: 350 × 350 × 1000 mm Height adjustment: motor drive Drop method: pneumatic; face, edge, and angle Air pressure: 8 kg as published Weight: 80 kg Power: single phase, AC 220 V ±10% |
GB/T 2423.8; JISC0044; IEC 60068 |
Confirmation note: These values are transcribed from the current TestLabs page for initial comparison and may vary by model, build, unit conventions, or customer test method. Confirm the final model, load and size combination, drop height, impact panel, controls, power supply, safety requirements, and standards applicability in the quotation before purchase.
Standards and test-method selection
The current product page references ISO 2248, ASTM D5276, JIS Z0202, GB/T 4857.5, ISTA procedures, and electronics-related methods listed with the small-device configuration. The applicable reference depends on the package or product, specimen mass and dimensions, drop orientation, conditioning, sequence, acceptance criteria, and the customer’s test plan. ISO 2248:1985 describes a vertical impact test by dropping for complete, filled transport packages. ASTM D5276-19 covers loaded boxes, cylindrical containers, and bags or sacks tested by free fall and describes evaluating container shock resistance and package protection. ISTA publishes multiple test-procedure series for different design and shipment objectives.
These references do not mean that every configuration is automatically certified to every standard. Ask TestLabs to confirm the applicable edition, method, fixture, drop height, orientation, control requirements, and documentation for your project. Equipment capability and laboratory, product, or packaging certification are separate matters.
Frequently Asked Questions About Drop Test Machines
What does a drop test machine test?
A drop test machine applies a controlled drop or impact to a package, finished product, or selected electronic device so a team can investigate damage, impact resistance, and package or product performance during handling and transportation. The correct test setup depends on the specimen, drop height, orientation, sequence, and acceptance criteria.
Which type of drop tester is suitable for packaging?
Single-wing and double-wing drop testers are commonly considered for package or finished-product drop testing, while a zero-drop tester may be considered for heavier or larger packages. Selection should be based on the package dimensions, mass, centre of gravity, required drop height, impact panel, release method, and customer test procedure.
Can the equipment test finished products and small electronic devices?
Yes, the current TestLabs page lists configurations for finished products and small electronic devices. The small-device configuration is described with face, edge, and angle drops, but the required specimen size, weight, pneumatic requirement, control method, and electronics test method should be confirmed before purchase.
Which standards or test methods can the drop testers support?
The current page lists references including ISO 2248, ASTM D5276, JIS Z0202, GB/T 4857.5, ISTA, and electronics-related methods shown with the small-device configuration. Applicability depends on the final machine configuration and the customer’s test plan. TestLabs should confirm the applicable edition, fixture, drop height, orientation, sequence, controls, and documentation before quotation.
Is a drop test machine automatically certified to every listed standard?
No. A standards reference indicates a possible test-method or configuration requirement; it does not by itself prove that every machine is certified or that every package or product complies. Ask TestLabs to confirm the applicable method and final configuration, and distinguish equipment capability from laboratory, product, or packaging certification.
What information should I provide to request a quotation?
Send the product or package type, specimen length × width × height, approximate weight, required drop height, drop faces or orientations, applicable standard or customer test method, desired display or control method, power supply, delivery location, and any customization, installation, or training requirements. Email sales@testlabs.my or call +6018-2030306.
Do you provide installation, operator training, and after-sales support?
TestLabs can discuss site installation, operator training, safety requirements, and after-sales support as part of the project scope. Availability and commercial terms may vary by equipment, site, and delivery location, so confirm the included services in the quotation. Contact sales@testlabs.my to discuss your requirements.
Installation, training and after-sales support
TestLabs supports customers in Malaysia, including projects in Kuala Lumpur, Selangor, Penang, and Johor, subject to project scope and delivery location. Discuss site access, floor space, electrical supply, lifting or unloading arrangements, operator training, safety controls, calibration expectations, and after-sales support during the quotation process. Singapore and wider Asia enquiries can also be assessed when the project requirements and logistics are clear.
Request a Quotation
To recommend a suitable drop test machine, send the product or package type, specimen length × width × height, approximate weight, required drop height, drop faces or orientations, applicable standard or customer test method, desired display or control method, power supply, delivery location, and any customization or installation requirements. If you are still defining the test, send photographs, drawings, or a short description and TestLabs can help identify the information that needs to be confirmed.
