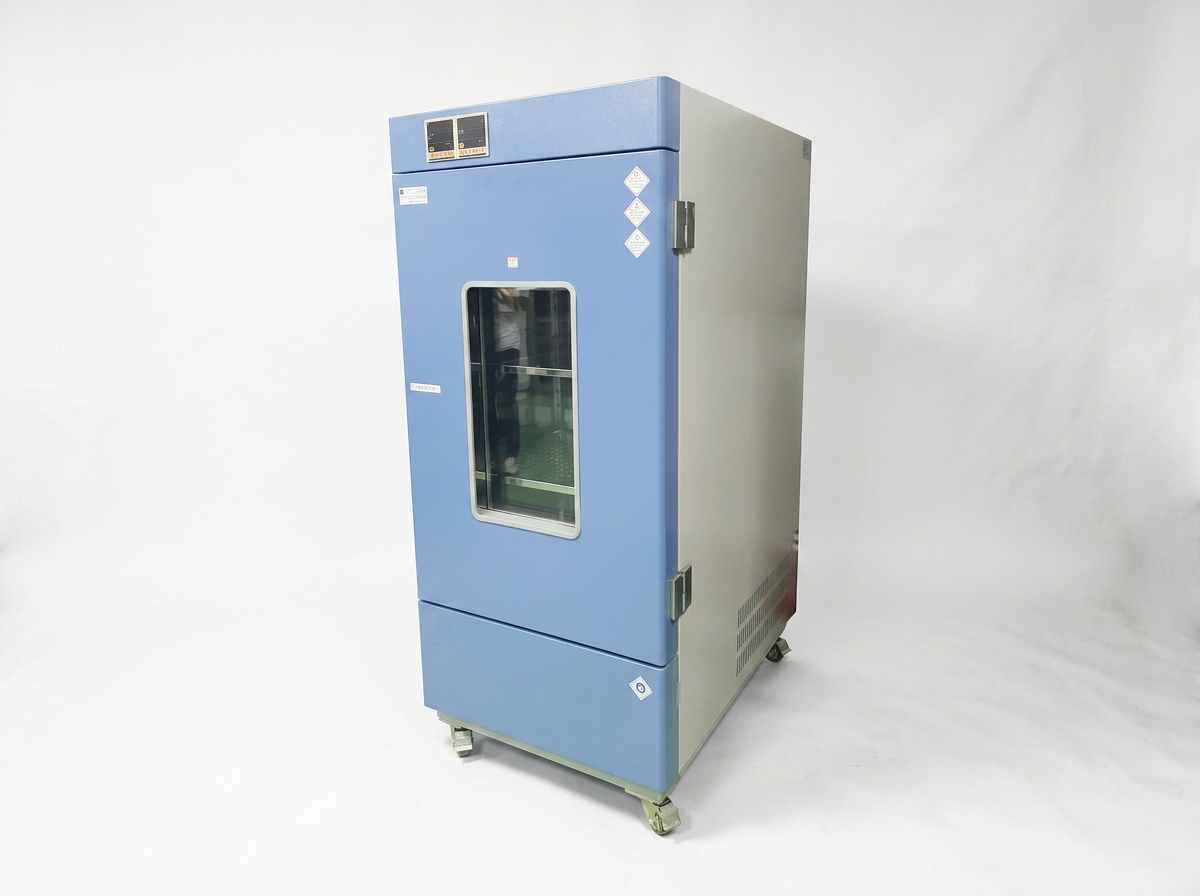

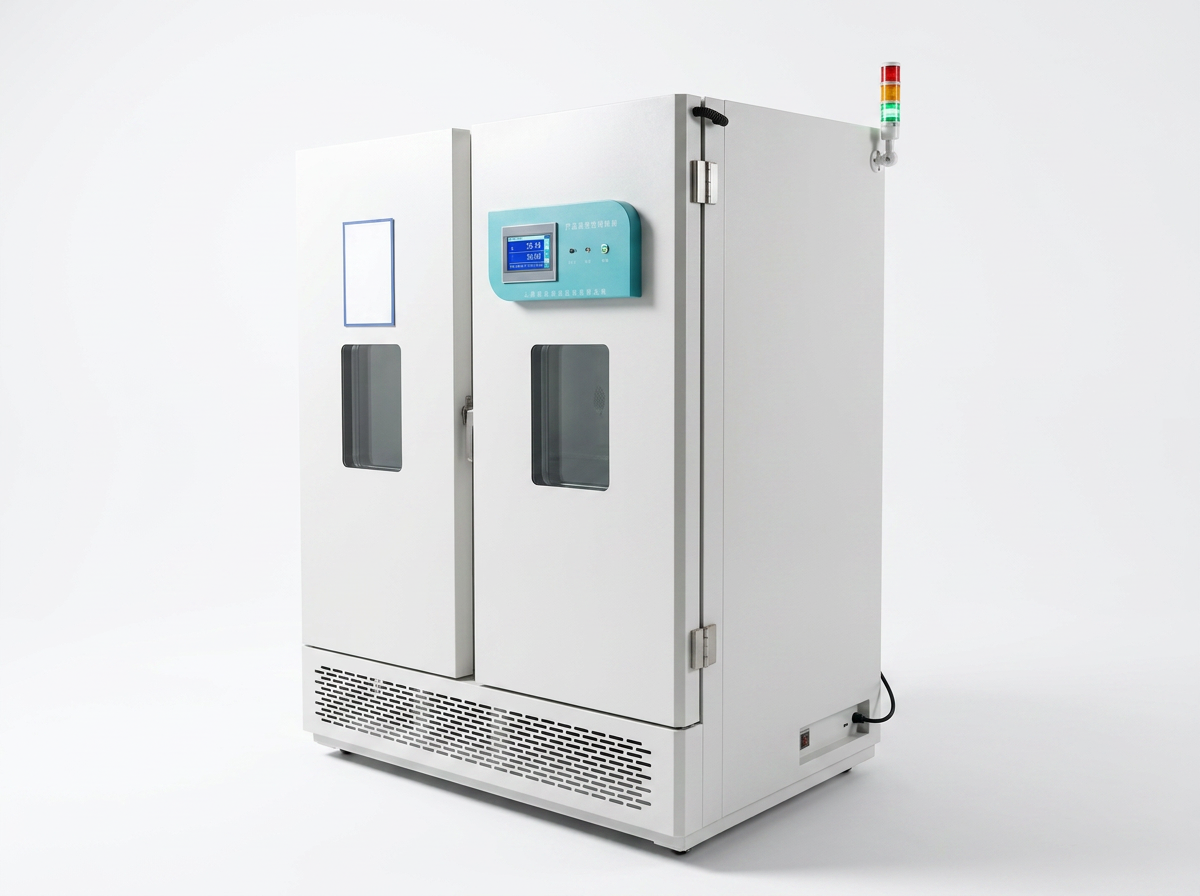

Drug Stability Test Chamber
A drug stability test chamber is controlled environmental equipment used to expose pharmaceutical products, active pharmaceutical ingredients, biological materials, packaging and related specimens to defined temperature and humidity conditions for stability studies. TestLabs helps pharmaceutical and research teams in Malaysia specify a chamber around the required test method, sample load, environmental setpoints, monitoring approach and validation scope.
✳︎
Local Technical Support
✳︎
1 Year Local Warranty
✳︎
Free Training
✳︎ Local Technical Support ✳︎ 1 Year Local Warranty ✳︎ Free Training
What is a drug stability test chamber?
A drug stability test chamber maintains a controlled environment so that a product or specimen can be monitored under specified storage or stress conditions. The resulting study data can support decisions about product quality, packaging, storage instructions and shelf-life when it is generated under the customer’s approved protocol and applicable quality system. Regulatory guidance describes stability data expectations; the chamber itself is one part of the overall testing, monitoring, qualification and documentation process.
For a pharmaceutical application, the important question is not simply whether a chamber reaches a displayed temperature or humidity value. The chamber must be selected and assessed against the required operating range, stability, uniformity, recovery, sample load, alarm response, data records, calibration and qualification criteria. TestLabs can review these requirements before the equipment is specified.
Applications for pharmaceutical and research stability studies
Long-term and accelerated stability studies
Use a controlled temperature and humidity environment for planned stability studies when the study protocol defines the required conditions, duration, sampling points and acceptance criteria. The chamber configuration should be matched to the product, packaging system, sample quantity and applicable market or customer requirements.
API, finished-product and formulation studies
Support controlled exposure studies for active pharmaceutical ingredients, finished dosage forms, formulations, research samples and other temperature- or moisture-sensitive materials. The final chamber arrangement should reflect the specimen’s dimensions, mass, packaging and loading pattern.
Packaging and container-closure evaluation
Evaluate how bottles, vials, blister packs, pouches, cartons or other packaging systems perform during controlled environmental exposure. Ask TestLabs to review the required sample arrangement, shelf spacing, access frequency and humidity recovery expectations.
Biologics, vaccines and laboratory materials
For biologics, vaccines, reagents and other sensitive materials, specify the required temperature and humidity profile, monitoring method, alarm response and data-retention requirements before selecting the chamber. Product-specific storage conditions must come from the responsible technical or quality team.
Key design and control features to specify
The most useful stability chamber is the one that matches the study protocol and the way your laboratory operates. Depending on the project, discuss the following items with TestLabs:
Temperature and humidity control. Confirm the required setpoints, operating range, control tolerance, spatial uniformity, recovery after door opening and expected loaded performance. Do not select a chamber from the display range alone.
Programmable operation. If the study includes multiple stages or repeatable cycles, specify the required sequence, hold time, ramp behaviour, alarm limits and restart behaviour. The final controller functions should be confirmed in the quotation.
Air circulation and sample loading. Shelf layout, clearance, sample density and door-opening frequency can affect chamber performance. Provide sample dimensions, approximate weight, packaging format and the intended loading pattern.
Monitoring and data logging. State whether you need local records, downloadable files, continuous monitoring, alarm notification, remote access, user permissions, audit trails or electronic records. Any software or data-integrity requirement must be confirmed against the exact proposed system.
Construction and cleanability. Confirm the internal material, shelf finish, door arrangement, seals, lighting, access port and cleaning method required for the application. Stainless-steel interiors or other finishes should be specified rather than assumed.
Safety and alarms. Discuss independent over-temperature protection, humidity or water-system protection, compressor or refrigeration protection, door alarms, power-failure behaviour and notification requirements. The final protection list is model- and configuration-specific.
Light or photostability capability. Temperature/humidity stability testing and photostability testing are related but distinct requirements. If light exposure is required, state the target light source, exposure arrangement and applicable method. ICH Q1B addresses photostability information for new active substances and associated medicinal products; do not assume that a standard temperature/humidity chamber performs this function without a verified light configuration.
Stability Chamber Technical Specifications
| Specification | Details |
|---|---|
| Temperature range | 20°C to 50°C |
| Humidity range | 50% to 90% RH |
| Temperature fluctuation | ±0.5°C |
| Temperature uniformity | ≤2°C |
| Temperature deviation | ±2°C |
| Humidity fluctuation | ±3% RH |
| Display and setting resolution | Time: 0.1 min; temperature: 0.01°C; humidity: 0.1% RH |
| Sample shelves | 9 adjustable-height shelf levels |
| Power supply | 220 V, 50 Hz, 16 A socket with a leakage-protection converter or device as specified for the installation |
| External material | Cold-rolled steel plate with electrostatic powder coating |
| Internal material | Mirror-finish SUS304 stainless steel; acid- and corrosion-resistant, with a smooth surface for easier cleaning |
| Door lock | Handle-free door locking system |
| Casters | 4 movable casters |
| Viewing window | 1 large tempered-glass viewing window |
| Interior light | 1 energy-efficient LED light |
| Test port | 1 side access/test port, 50 mm diameter |
| Insulation and sealing | High-quality magnetic door seals and thermal insulation materials |
| Air duct system | Air circulation system designed to promote high temperature and humidity uniformity |
| Control system | 7-inch touchscreen controller with RS485, Ethernet and USB interfaces, plus three-level user authority |
| Humidity sensor | Electronic humidity sensor |
| Printer | Integrated printer with adjustable print interval or frequency for temperature, humidity and date records |
| Refrigeration unit | Fully enclosed compressor |
| Safety protection | Protection and alarms for over-temperature, leakage, automatic start/stop, timed operation, automatic restart after power failure, heater short circuit, humidifier low water, overload, fan overheating and upper/lower limit deviations |
| Included documentation | Product certificate, user manual, electrical schematic, warranty card, instrument manual and other documentation supplied with the final order |
| Warranty | 1 year, subject to the final quotation and warranty terms |
Specification note: Final operating performance, dimensions, electrical requirements, included documentation and warranty terms should be confirmed for the selected configuration in the TestLabs quotation.
Information to Include in Your Quotation Request
| Project detail | Please provide | How it supports the quotation |
|---|---|---|
| Product or specimen | API, finished dosage form, biologic, vaccine, reagent, packaging, medical device or other material. | Identifies the application, handling needs and any product-specific risks to discuss. |
| Environmental conditions | Required temperature and relative humidity setpoints, tolerances, cycles and any special conditions. | Allows the operating range and control performance to be reviewed against the study method. |
| Study duration and sampling | Expected duration, sampling frequency, door-opening pattern and whether multiple programs are needed. | Supports program design, access planning, monitoring and recovery discussions. |
| Sample quantity and load | Number of samples, packaging dimensions, approximate weight, shelf arrangement and future capacity needs. | Determines usable volume, shelf layout, airflow clearance and whether a cabinet or walk-in solution is more suitable. |
| Applicable method or standard | Approved internal protocol, customer specification, applicable standard or regulatory requirement. | Prevents a generic catalogue configuration from being mistaken for a fit-for-purpose study setup. |
| Data and alarms | Local data records, downloadable files, continuous monitoring, remote access, alarm notifications, audit trails, user permissions or electronic-record requirements. | Allows the controller, software, data-retention and notification scope to be assessed. |
| Light exposure | Whether photostability testing is required, including light source, exposure arrangement and method. | Photostability may require a separate or optional light configuration and should not be assumed. |
| Validation and documentation | Calibration, temperature/humidity mapping, IQ/OQ/PQ, commissioning, reports, certificates or training required. | Defines the proposed qualification and documentation responsibilities before order placement. |
| Site and utilities | Installation address, access route, room dimensions, electrical supply, ventilation, drainage or water availability and maintenance clearance. | Checks site suitability, installation constraints and regional support requirements. |
Ready to discuss your requirement? Email sales@testlabs.my or call +6018-2030306. TestLabs supports projects across Penang, Selangor, Johor, Kuala Lumpur and other locations in Malaysia.
Request a technical quotation
Send the following information to sales@testlabs.my so that TestLabs can respond with a technically meaningful proposal: the product or specimen type; approximate quantity, dimensions and weight; required temperature and humidity conditions; applicable standard, test method or internal protocol; study duration and sampling pattern; chamber volume or shelf requirement; door, access and loading constraints; power supply and installation location; data logging, remote monitoring or alarm requirements; light or photostability requirements; calibration, mapping or IQ/OQ/PQ expectations; and any preferred delivery or commissioning scope.
Localized Support for Malaysia's Industrial Hubs
We provide direct equipment sales, technical supply, and rapid on-site maintenance for specialized industries across Malaysia:
• Penang: Semiconductor labs and microelectronics wafer fabrication facilities requiring precise steady-state climate chambers.
• Selangor: Automotive component testing and industrial manufacturing QA facilities needing programmable environmental chambers.
• Johor: Heavy manufacturing and electronics assembly hubs demanding reliable temperature humidity testing equipment.
• Kuala Lumpur: Centralized R&D and compliance testing laboratories.
Drug Stability Test Chamber FAQ
What is a drug stability test chamber used for?
A drug stability test chamber provides controlled environmental conditions for studying pharmaceutical products, active pharmaceutical ingredients, biological materials, packaging and related specimens. The study data can support product-quality, storage-condition and shelf-life decisions when it is generated under the approved protocol and applicable quality system.
Can TestLabs configure a chamber for ICH Q1A(R2) stability conditions?
TestLabs can review the temperature, humidity, monitoring, loading and documentation requirements in your study protocol and propose a suitable configuration. ICH Q1A(R2) is a stability-testing guideline, not an automatic equipment certification. Final suitability, qualification evidence and acceptance criteria must be confirmed for the selected model and your applicable test method.
What temperature and humidity conditions should a stability chamber provide?
The required conditions depend on the approved study protocol, product type, packaging, duration, sampling plan and applicable market or regulatory requirement. Do not choose a chamber from a generic setpoint list alone. Send TestLabs your required setpoints, tolerances, load and test method so that operating range, stability, uniformity and recovery can be reviewed together.
Can the chamber perform photostability testing?
Photostability is a separate requirement from ordinary temperature and humidity control. If light exposure is required, specify the light source, exposure arrangement and applicable method when requesting a quotation. TestLabs will confirm whether an optional light configuration or a separate photostability solution is appropriate. ICH Q1B addresses photostability information for new active substances and associated medicinal products.
Does TestLabs provide temperature mapping and IQ/OQ/PQ support?
TestLabs can review the required calibration, temperature and humidity mapping, installation qualification, operational qualification and performance qualification scope for the project. The exact instruments, acceptance criteria, reports, responsibilities and included services must be agreed in the quotation and confirmed for the selected chamber.
Can data logging, alarms or remote monitoring be included?
Data logging, alarm notification, remote monitoring, user permissions, audit trails and electronic-record functions can be discussed as configuration requirements. Tell TestLabs which records, retention period, access controls and notifications your quality system requires. Software capability and any data-integrity claim must be verified against the exact proposed system.
Can the drug stability test chamber be customized?
Configuration can be reviewed around chamber format, usable capacity, shelf layout, internal materials, doors, access ports, controller functions, monitoring, light capability, utilities, installation constraints and validation documentation. Provide your sample dimensions, approximate weight, required conditions, site details and applicable method so customization can be assessed accurately.
Should I choose a cabinet chamber or a walk-in stability room?
A cabinet-type chamber is generally considered when the required sample load fits within a controlled enclosure, while a walk-in stability room may be considered for larger volume, palletized or high-throughput requirements. The decision also depends on loading access, floor space, personnel access, utilities, heat rejection, monitoring and mapping. TestLabs can review the project and recommend the appropriate format.
How do I request a quotation from TestLabs Malaysia?
Email the product or specimen type, required temperature and humidity conditions, sample quantity and dimensions, study duration, applicable method, chamber or shelf requirement, monitoring needs, light requirement, validation scope and installation location to sales@testlabs.my. You can also call +6018-2030306. TestLabs supports projects across Penang, Selangor, Johor, Kuala Lumpur and other locations in Malaysia.
Request a Quotation
Tell TestLabs what you need to test, which conditions must be controlled and where the equipment will be installed. Our technical team will help clarify the configuration, documentation and support required for your stability program.
