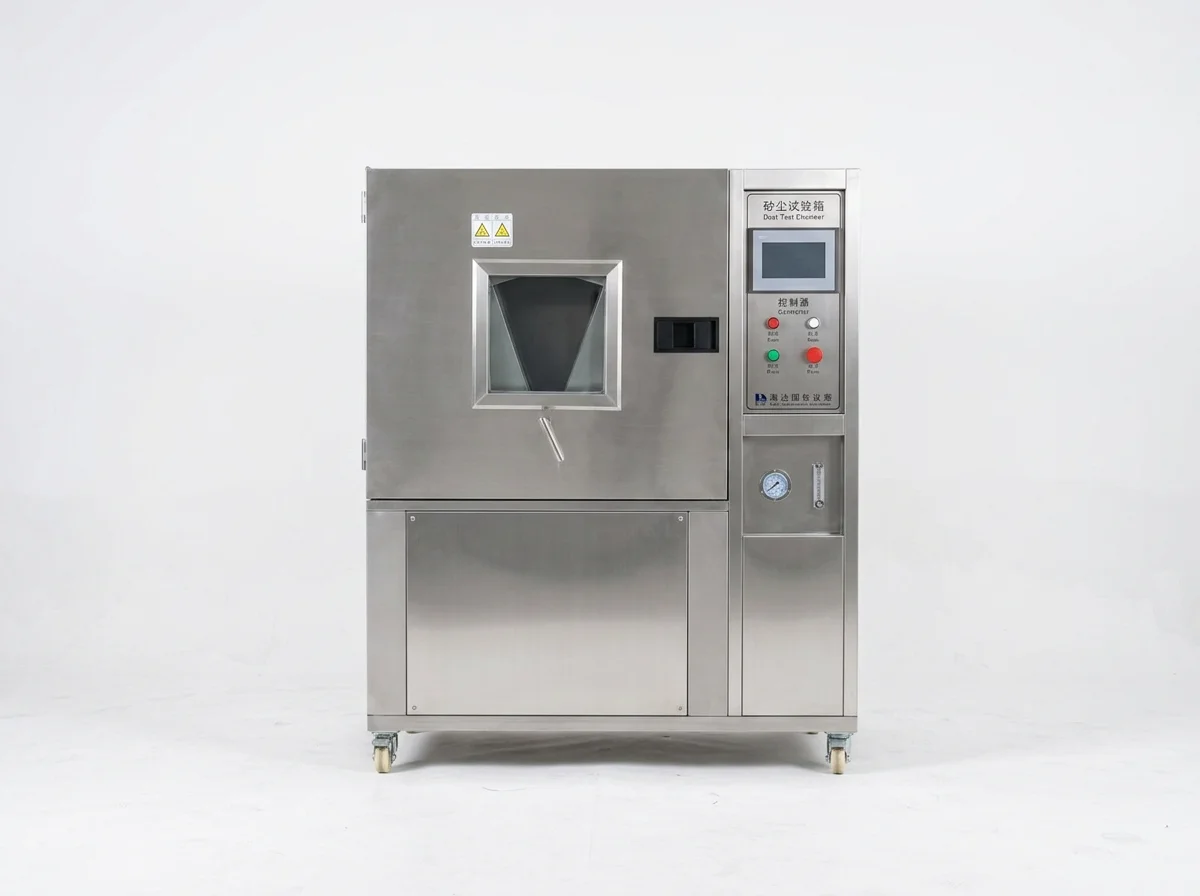

IP5X & IP6X Dust Test Chamber for Enclosure Dust-Ingress Testing
TestLabs supplies configurable IP5X/IP6X dust test chambers in Malaysia for manufacturers that need controlled dust-ingress testing of electrical and electronic enclosures, automotive components, seals, meters, and related products. The chamber introduces a controlled dust environment so customers can evaluate enclosure sealing performance against the requirements of their selected test method.
For IEC 60529 work, IP5X generally refers to a dust-protected enclosure and IP6X to a dust-tight enclosure. The chamber is used to conduct the test; the final product rating depends on the specimen, applicable standard, test conditions, and evaluation of the product after exposure. Tell us your product dimensions, required test level, and applicable standard so we can recommend a suitable configuration.
✳︎
Local Technical Support
✳︎
1 Year Local Warranty
✳︎
Free Training
✳︎ Local Technical Support ✳︎ 1 Year Local Warranty ✳︎ Free Training
Applications
IP5X vs IP6X: What Is the Difference?
IP5X and IP6X are dust-related parts of the IEC 60529 Ingress Protection Code. The first numeral describes protection against solid objects; the second numeral, shown as X when it is not being specified on this page, relates to water protection. IP5X is commonly described as dust protected, while IP6X is commonly described as dust tight. The exact test setup, dust medium, duration, pressure or vacuum conditions, and evaluation criteria must be taken from the applicable standard and customer test method.
A dust test chamber supports controlled testing; it does not automatically certify the product placed inside it. TestLabs should review the product drawing, enclosure design, specimen condition, required IP code, and applicable edition of the standard before confirming the final configuration.
| IP code | Common description | Dust-protection meaning | Buyer planning implication |
|---|---|---|---|
| IP5X | Dust protected | Dust ingress is limited so that it does not interfere with the satisfactory operation of the equipment under the applicable test and evaluation conditions. | Confirm the product’s operating state, enclosure design, dust method, exposure conditions, and acceptance criteria. |
| IP6X | Dust tight | No dust ingress is permitted under the applicable test and evaluation conditions. | Confirm the required chamber configuration, product evaluation method, specimen sealing details, and any vacuum or pressure requirements in the applicable method. |
Important: IP5X and IP6X describe the enclosure’s protection level under the applicable standard. A dust test chamber is equipment used to conduct the test; it does not by itself certify the product or guarantee a rating.
A dust test chamber is useful when a manufacturer needs repeatable exposure conditions for checking how dust affects an enclosure, seal, opening, or component. Typical applications include electrical and electronic products, consumer devices, power meters, automotive and motorcycle components, locks, housings, connectors, vents, and other products intended for dusty or sandy operating, storage, or transport environments.
The appropriate chamber configuration depends on the specimen envelope, product weight, internal working space, required dust method, exposure conditions, and whether the product must operate during or after the test. Confirm these details with TestLabs before selecting a chamber size or claiming an IP rating.
| Application or product type | What the chamber helps the buyer evaluate | Information to confirm before quotation |
|---|---|---|
| Electrical and electronic enclosures | Whether dust exposure affects enclosure sealing, openings, internal components, or product operation under the selected test method. | Enclosure dimensions, operating condition during test, required IP code, and applicable standard or customer method. |
| Consumer devices and mobile products | Repeatable dust exposure for development, design verification, troubleshooting, or qualification work. | Specimen size and weight, test orientation, ports or vents, and whether the device must remain powered. |
| Automotive and motorcycle components | Dust-related sealing performance of housings, connectors, locks, sensors, covers, and other components used in vehicles. | Component envelope, fixtures, material or dust method, operating sequence, and any automotive customer specification. |
| Meters, power products, and industrial equipment | How dust exposure may affect enclosure protection, moving parts, vents, displays, and electrical operation. | Product operating state, heat dissipation requirements, cable or conduit entry, and evaluation criteria after exposure. |
| Seals, locks, and small mechanical products | Dust ingress around joints, seals, moving interfaces, and other openings in the product enclosure. | Fixture arrangement, movement during test, specimen dimensions, and the required acceptance criteria. |
Configuration note: This table describes common application categories, not a guarantee of a particular product rating. Confirm the specimen, test method, and evaluation criteria with TestLabs before purchase.
Technical specifications
The following sizes and construction details are based on the information currently displayed on this page. Final dimensions, controls, dust circulation, vibration or agitation settings, power supply, access arrangement, and test accessories should be confirmed against the customer’s product and required method before quotation.
| Specification | Published information | Quotation confirmation required |
|---|---|---|
| Internal chamber size, L × W × H | 600 × 600 × 600 mm; 800 × 800 × 800 mm; 1000 × 1000 × 1000 mm | Select the working size from the specimen envelope, fixtures, movement, and clearance required by the test method. |
| External chamber size, L × W × H | 1100 × 900 × 1650 mm; 1300 × 1100 × 1800 mm; 1500 × 1300 × 2000 mm | Confirm final external dimensions, access, installation clearance, transport route, and site conditions. |
| Custom chamber size | Tailor-made chamber size is stated as available. | Confirm the required internal working space, specimen mass, fixtures, and design feasibility. |
| Chamber material | SUS 304 stainless steel is stated on the current product page. | Confirm material grade, surface finish, construction details, and any customer specification. |
| Observation | A transparent window is stated to support specimen observation during testing. | Confirm window size, visibility requirements, lighting, and any safety or access requirements. |
| Dust circulation and collection | The current page describes a stainless-steel fan and funnel-type interior arrangement for dust circulation and collection. | Confirm dust medium, circulation method, recovery or cleaning arrangement, and test-method requirements. |
| Vibration or agitation | The current page states that the vibration cycle can be adjusted. | Confirm the adjustment range, control method, and whether this feature is required for the selected test method. |
| Power, controls, and accessories | Not specified in sufficient detail on the current page. | Confirm power supply, controller functions, alarms, dust accessories, fixtures, documentation, training, and installation. |
Technical note: Dimensions and features above reproduce information currently shown on the TestLabs product page. Final configuration, applicable standards, test conditions, warranty, delivery, and support terms must be confirmed in the quotation.
Chamber construction and configuration options

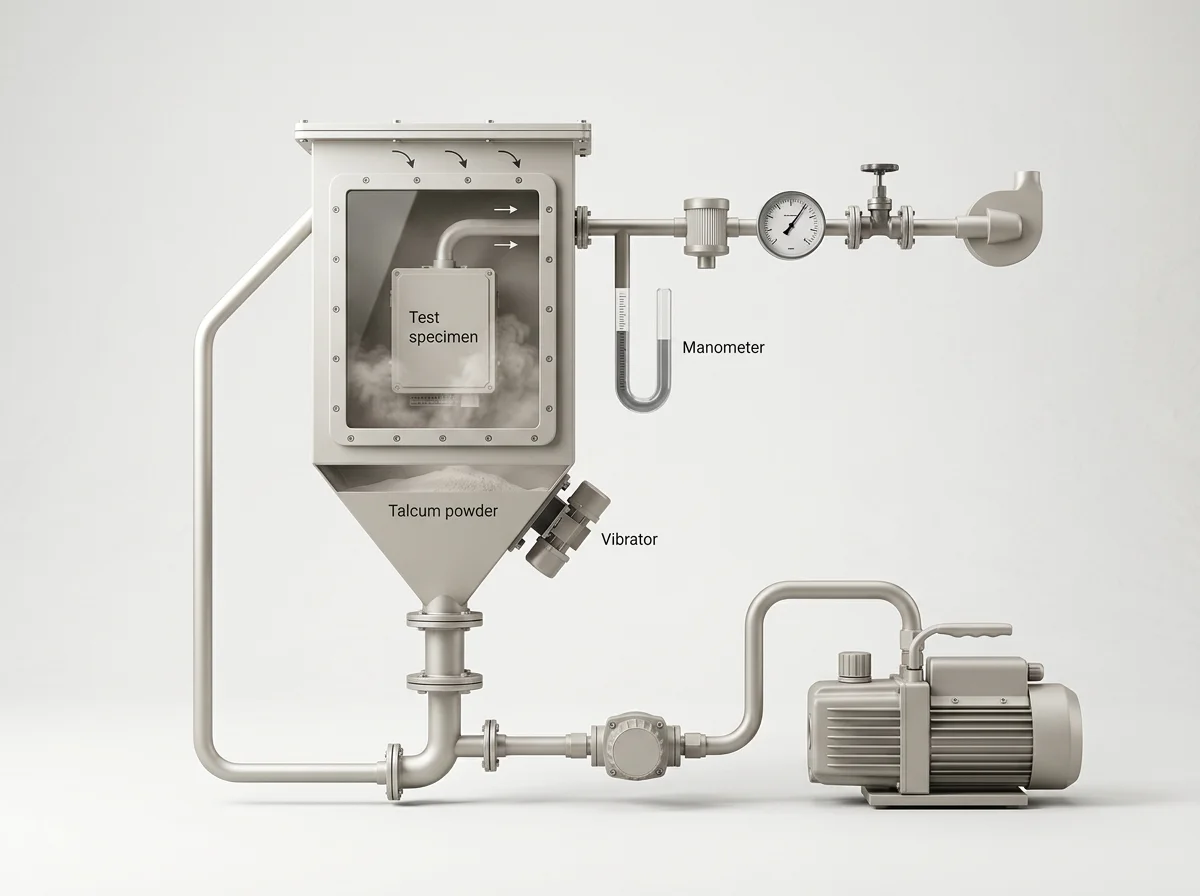

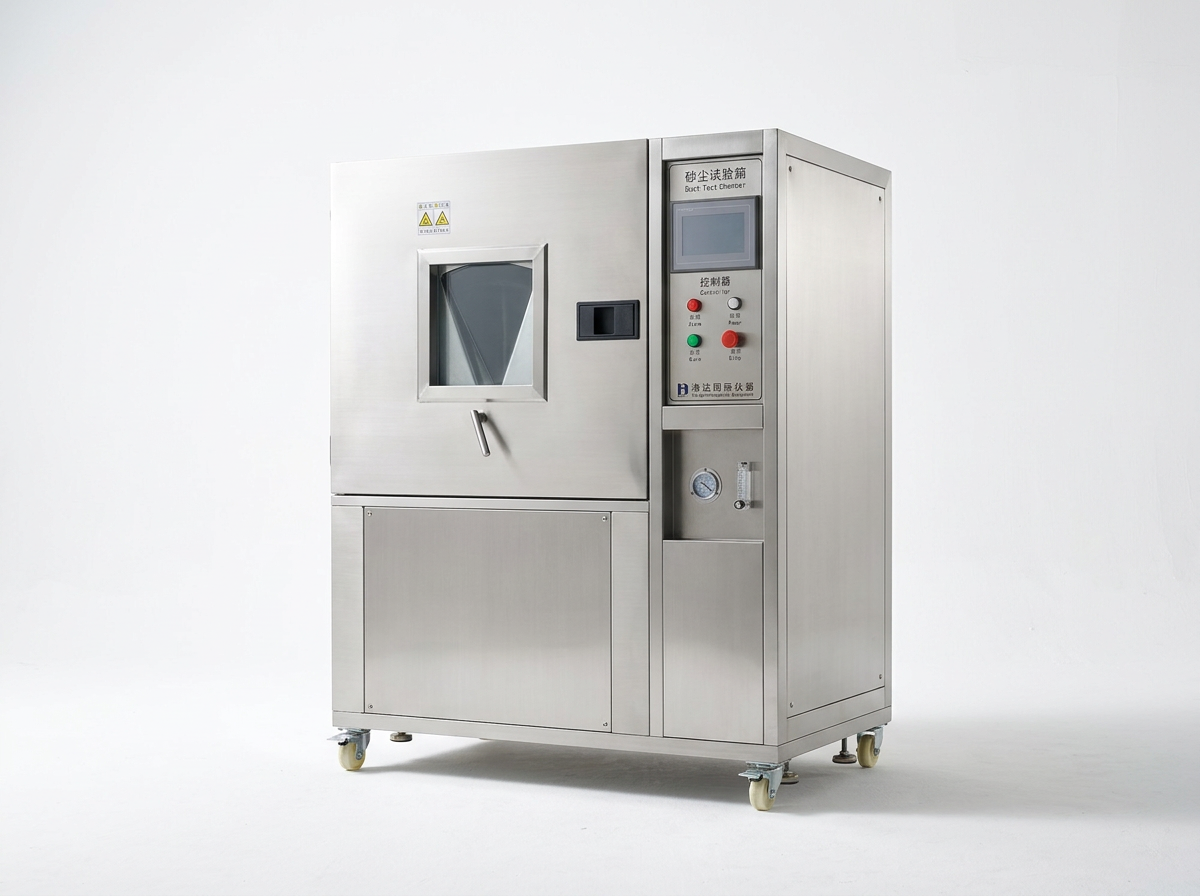

The current product information describes a SUS 304 stainless-steel chamber, a transparent observation window, a stainless-steel fan assembly, and an internal funnel-type arrangement intended to support dust circulation and collection. The page also states that the vibration cycle can be adjusted and that tailor-made chamber sizes are available.
Configuration should be reviewed against the specimen dimensions, specimen mass, required dust method, access requirements, control functions, electrical supply, installation environment, and service location. Warranty, delivery, installation, training, and on-site support arrangements should be confirmed in the quotation rather than assumed from a general product description.
For a suitable recommendation, please provide:
• Product or specimen type and intended application.
• Maximum specimen dimensions and approximate weight.
• Required test level, such as IP5X or IP6X.
• Applicable standard, customer specification, or internal test method.
• Whether the specimen must operate during testing.
• Required internal working space and access arrangement.
• Power supply, installation location, and delivery city or country.
Standards and Test-Method Confirmation
Common reference points for this type of equipment include IEC 60529 for enclosure Ingress Protection (IP ) Code testing and IEC 60068-2-68 for environmental dust-and-sand testing. The current page also lists IEC 60068-2-68 LA2 vertical dust flow, GB4208-93, GB2423.37-89, GJB150.12, and GB10485. Confirm the required standard edition, test method, dust medium, exposure conditions, and evaluation criteria with TestLabs before placing an order.
Standards references describe the intended test method; they should not be presented as proof that every chamber configuration is automatically compliant or that every product tested will achieve a particular IP rating.
Frequently Asked Questions
What is an IP5X/IP6X dust test chamber?
An IP5X/IP6X dust test chamber is controlled equipment used to expose products or enclosures to dust under a selected test method. It helps manufacturers evaluate sealing performance, dust ingress, and product operation or condition after exposure. The chamber itself does not certify a product; the final result depends on the specimen, standard, test conditions, and evaluation.
What is the difference between IP5X and IP6X?
IP5X is commonly described as dust protected, while IP6X is commonly described as dust tight. IP5X evaluation considers whether dust enters in a quantity that interferes with satisfactory operation under the applicable conditions. IP6X does not permit dust ingress under the applicable conditions. Confirm the exact acceptance criteria in the required edition of IEC 60529 or the customer test method.
Which products can be tested in a dust test chamber?
Typical applications include electrical and electronic enclosures, consumer devices, power meters, automotive and motorcycle components, locks, seals, housings, connectors, vents, and other products intended for dusty or sandy environments. TestLabs should review the product dimensions, weight, operating state, and required method before confirming suitability.
Which standards can the chamber be configured for?
The current page references IEC 60529 for IP Code testing and IEC 60068-2-68, including LA2 vertical dust flow, as well as several GB and GJB methods. The required standard edition, dust medium, circulation or vacuum condition, exposure time, and evaluation criteria must be confirmed against the customer specification before quotation.
What chamber sizes are available?
The current product page lists internal sizes of 600 × 600 × 600 mm, 800 × 800 × 800 mm, and 1000 × 1000 × 1000 mm. It also lists corresponding external sizes and states that tailor-made chamber sizes are available. Final size selection should account for the specimen envelope, fixtures, movement, clearance, and test method.
Can TestLabs customize the dust test chamber?
The current page states that customization and tailor-made chamber sizes are available. Ask TestLabs to review the required internal working space, specimen weight, fixtures, control functions, dust method, power supply, installation location, training, and after-sales support before the quotation is finalized.
What information should I provide to request a quotation?
Provide the product or specimen type, maximum dimensions, approximate weight, required test level such as IP5X or IP6X, applicable standard or customer method, whether the specimen must operate during testing, preferred chamber size, power supply, delivery location, and customization requirements. Email sales@testlabs.my or contact TestLabs at +6018-2030306.
Does buying the chamber automatically give my product an IP5X or IP6X rating?
No. A chamber is used to conduct a controlled dust-ingress test. The product’s final IP rating depends on the applicable standard, the configured test conditions, the product specimen, and the evaluation of the product after exposure. TestLabs should confirm the configuration against the required test method before purchase.
Localized Support for Malaysia's Industrial Hubs
TestLabs supports customers who need environmental and laboratory testing equipment in Malaysia. The current product information includes on-site support within Malaysia, operating training for staff, a one-year manufacturer warranty with service, and an optional two-year warranty arrangement. Online and on-site technical support is also stated for Malaysia and Singapore.
Customers in Kuala Lumpur, Selangor, Penang, Johor, and other Malaysian locations can contact TestLabs for application discussion, chamber selection, quotation, and support planning. Confirm delivery, installation, calibration, maintenance, and any site-specific requirements before purchase so the final scope matches the laboratory’s needs.
Request a Quotation
Tell us your product type, maximum specimen dimensions, approximate weight, required IP test level, applicable standard or customer method, power supply, delivery location, and any customization requirements. TestLabs can then review the chamber size and configuration needed for your application.
