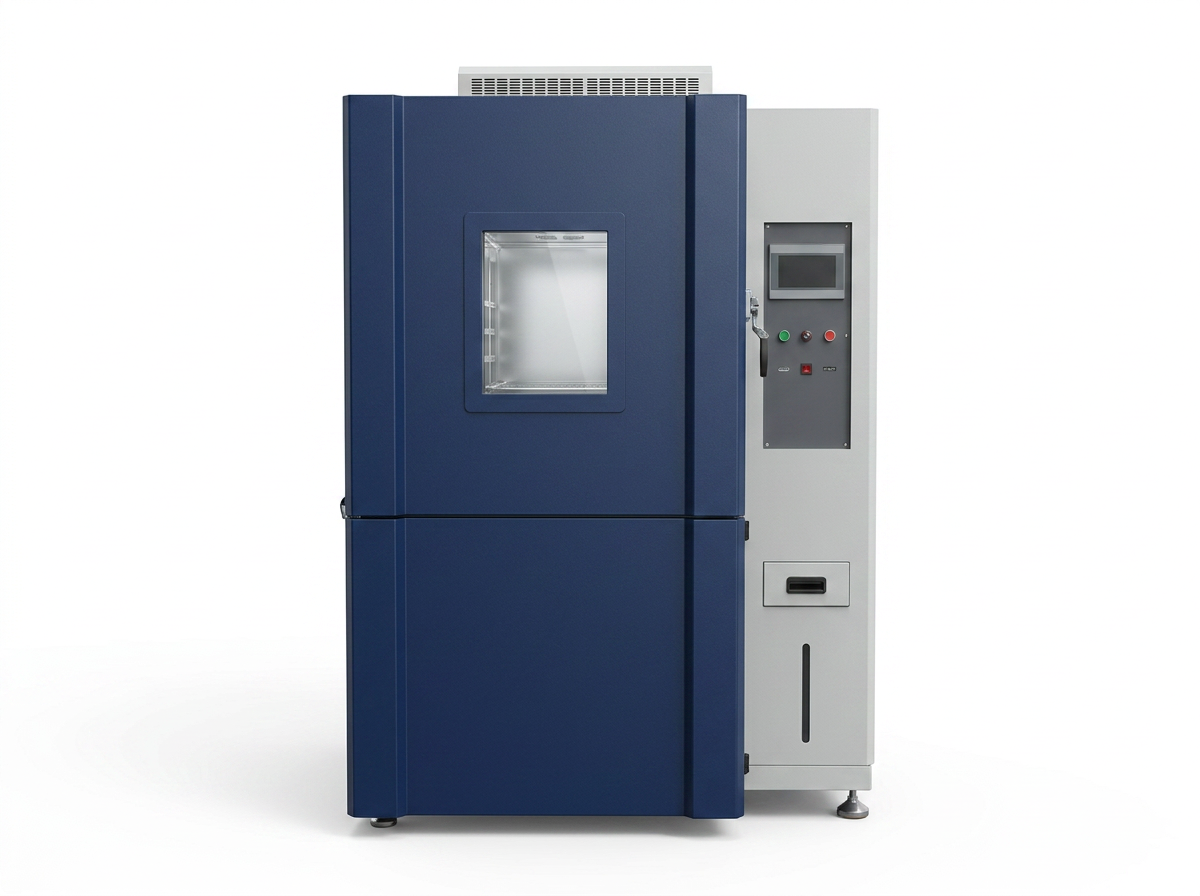

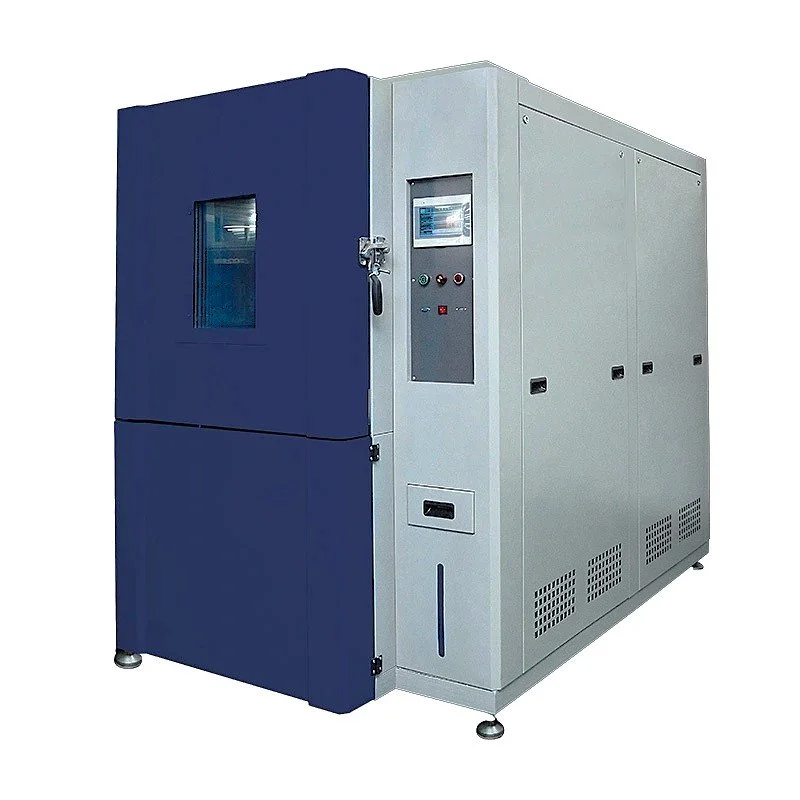

Rapid-Rate Thermal Cycle Chamber (ESS Chamber)
- Reliable, quality and affordable
- On site support
- 1 year warranty
- Ship to your doorstep
- Customization is available
✳︎
Local Technical Support
✳︎
1 Year Local Warranty
✳︎
Free Training
✳︎ Local Technical Support ✳︎ 1 Year Local Warranty ✳︎ Free Training
High-Performance Environmental Stress Screening for Reliability Testing
The Rapid-Rate Thermal Cycle Chamber, commonly known as the Environmental Stress Screening (ESS) Chamber, is engineered to evaluate the thermal-mechanical integrity of critical components. By subjecting products to rapid ambient temperature changes—up to 20°C per minute—this chamber simulates the most extreme real-world environmental conditions. It is the definitive testing solution for semiconductor manufacturers in Penang, automotive engineers in Selangor, and heavy electronics facilities in Johor seeking to identify failure modes before market deployment.
At TestLabs, we supply industry-leading ESS chambers designed for the rigorous screening of photoelectric components, interconnection circuits, printed circuit boards (PCBs), and advanced electronic devices. Our systems are fully compliant with international testing protocols, ensuring your quality assurance processes meet global standards.
IEC 60068-2-14 Complied Temperature Cycling
Compliance is non-negotiable in high-stakes manufacturing. Our ESS Chambers are strictly calibrated to perform IEC 60068-2-14: 2009 (Test N: Change of Temperature). This standard dictates the methodology for determining the ability of components and equipment to withstand rapid changes in ambient temperature.
By investing in a TestLabs ESS Chamber, your facility gains the capability to execute precise, repeatable thermal cycling profiles. This ensures your products survive the transition from warm indoor environments to sub-zero outdoor conditions, or the intense thermal gradients generated by high-wattage internal components during operation.
Standard Chamber Size & Dimension Specifications
We offer a range of standard capacities to accommodate diverse testing volumes, from compact component batches to larger sub-assemblies. Customization is also available to meet specific laboratory footprint constraints.
| Model | Internal Dimension (W × D × H) | External Dimension (W × D × H) | Capacity Volume |
|---|---|---|---|
| HD-E708-100 | 400 × 500 × 500 mm | 600 × 1080 × 1380 mm | 100 Liters |
| HD-E708-150 | 500 × 500 × 600 mm | 700 × 1080 × 1480 mm | 150 Liters |
| HD-E708-225 | 500 × 600 × 750 mm | 600 × 1180 × 1630 mm | 225 Liters |
Advanced Technical Specifications
Our Rapid-Rate Thermal Cycle Chambers are built with premium, branded critical components to guarantee long-term stability and precise control, even under continuous heavy usage.
| Parameter | Operational Capability |
|---|---|
| Temperature Range | 0°C / -20°C / -40°C / -70°C to +150°C |
| Temperature Accuracy | 0.01°C |
| Temperature Uniformity | ≤ ± 2.0°C |
| Temperature Deviation | ±0.5°C to ±0.2°C (without load) |
| Heating Speed | 1°C/min to 10°C/min (Customizable up to 20°C/min) |
| Cooling Speed | 1°C/min to 10°C/min (Customizable up to 20°C/min) |
| Humidity Range | 20% RH to 98% RH |
| Humidity Resolution | 0.1% RH |
| Humidity Uniformity | ±3% RH (without load) |
Why Choose TestLabs as Your ESS Chamber Supplier in Malaysia?
Procuring capital testing equipment requires a partner who understands both the machinery and the local operational environment. TestLabs is recognized as a premier Environmental & Reliability Testing Equipment Supplier across Malaysia and the ASEAN region.
We provide comprehensive local support that overseas manufacturers simply cannot match. Every ESS Chamber installation includes on-site commissioning, operator training, and rapid-response technical support from our engineering teams based in Kuala Lumpur. We offer a standard 1-year warranty covering parts and service, with an optional 2-year extended warranty for complete peace of mind. Furthermore, our chambers are configured for standard Malaysian industrial power infrastructure (3-phase 415V AC, 50Hz).
Request a Consultation with Our Local Engineers
Localized Support for Malaysia's Industrial Hubs
We provide direct equipment sales, technical supply, and rapid on-site maintenance for specialized industries across Malaysia:
• Penang: Semiconductor labs and microelectronics wafer fabrication facilities requiring precise steady-state climate chambers.
• Selangor: Automotive component testing and industrial manufacturing QA facilities needing programmable environmental chambers.
• Johor: Heavy manufacturing and electronics assembly hubs demanding reliable temperature humidity testing equipment.
• Kuala Lumpur: Centralized R&D and compliance testing laboratories.
Technical Insights: ESS Chamber vs. Thermal Shock Chamber
A common question during the procurement phase is the distinction between Environmental Stress Screening (ESS) and Thermal Shock testing. While both evaluate temperature-related vulnerabilities, their mechanics and applications differ significantly.
An ESS Chamber (Thermal Cycling) utilizes a single testing zone where the temperature is rapidly increased or decreased. The product remains stationary while the ambient air temperature changes around it at a controlled rate (e.g., 10°C to 20°C per minute). This method is ideal for identifying latent manufacturing defects, solder joint weaknesses, and material expansion mismatches without inducing the extreme instantaneous stress of a shock test.
Conversely, a Thermal Shock Chamber features two or three separate temperature zones (hot, cold, and sometimes ambient). The product is physically transferred between these pre-conditioned zones using a pneumatic basket, resulting in an almost instantaneous temperature change. Thermal shock is utilized to simulate sudden, extreme environmental shifts, such as an aerospace component moving from a heated runway to high-altitude freezing temperatures in minutes.
For semiconductor fabrication in Penang or automotive electronics in Selangor, ESS thermal cycling provides the optimal balance of rigorous stress screening and realistic operational simulation, ensuring high reliability in the final product.
Frequently Asked Questions
-
Our chambers are built specifically for Malaysian industrial standards, utilizing standard 3-phase 415V AC, 50Hz electrical connections. No specialized voltage converters are necessary.
-
Operating testing equipment in Malaysia's tropical climate presents unique challenges. Our ESS Chambers integrate custom PID controllers and advanced water filtration systems that protect internal humidity sensors from scaling and drift, ensuring long-term accuracy and reducing maintenance downtime.
-
Absolutely. While our standard models offer rates between 1°C and 10°C per minute, we regularly custom-build ESS Chambers capable of achieving up to 20°C per minute to meet specific MIL-STD or advanced semiconductor testing requirements.
Industries We Serve
Electronics & Semiconductors
Test circuit boards, microchips, and electronic components for thermal stress resistance. Ensure products survive extreme temperature transitions in real-world conditions.
Automotive & Aerospace
Validate critical components like sensors, connectors, and batteries for thermal durability. Comply with automotive and aerospace testing standards for safety-critical applications.
Pharmaceutical & Chemical
Test medication stability, chemical formulations, and packaging materials under extreme conditions. Ensure product integrity and shelf-life compliance.
Materials & Manufacturing
Evaluate composite materials, plastics, rubber, and metals for thermal expansion effects. Support product improvement and quality assurance processes.
Research & Development
Universities, testing laboratories, and R&D facilities use thermal shock chambers for material science research and product development validation.
