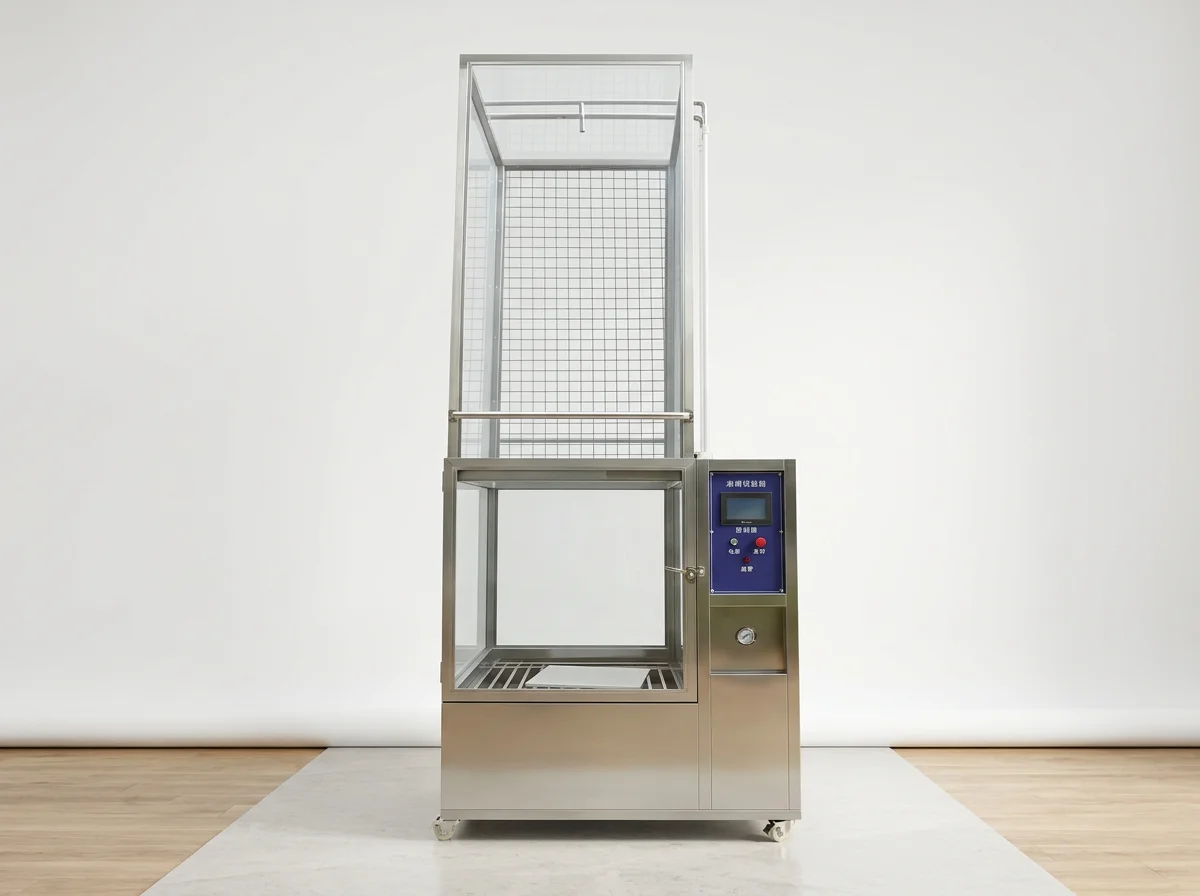

IPX5/IPX6 Water-Jet Test Chamber
The TestLabs IPX5/IPX6 water-jet test chamber is laboratory equipment for evaluating enclosure resistance to water jets on products such as outdoor lighting, electrical appliances, communication devices, signal equipment, and automotive lamps. TestLabs can help you review the required test level, sample size, utilities, applicable test method, and configuration before you request a quotation.
✳︎
Local Technical Support
✳︎
1 Year Local Warranty
✳︎
Free Training
✳︎ Local Technical Support ✳︎ 1 Year Local Warranty ✳︎ Free Training
IPX5/IPX6 Water Jet Test Chamber Supplier in Malaysia
What Is an IPX5/IPX6 Water-Jet Test Chamber?
An IPX5/IPX6 water-jet test chamber is equipment used to apply controlled water-jet conditions to an enclosure or product during ingress protection evaluation. IPX5 and IPX6 are liquid-protection test levels within the IP code framework. The exact nozzle, flow, pressure, distance, duration, sample orientation, and acceptance criteria must be selected and confirmed against the applicable edition of IEC 60529 or the customer’s specified test method.
This chamber is intended to support controlled testing; it does not automatically grant an IP rating or certification to the product under test. A product’s final rating depends on the complete test method, the sample and mounting arrangement, the test results, and any required conformity or certification process.
The IEC explains that the IP code grades an enclosure’s protection against the intrusion of solids and liquids. The first numeral relates to solid objects, while the second numeral relates to liquids; the full test conditions are defined in IEC 60529. Because “X” indicates that a solid-particle rating is not specified in the particular code, this page should describe IPX5/IPX6 as water-jet test levels rather than as a complete dust-and-water product certification.
Products and Applications
The chamber can be considered for products that require water-jet ingress protection evaluation, including outdoor luminaires and lamps, signal devices, household electrical appliances, communication equipment, electrical and electronic enclosures, and automotive lamps or components. TestLabs also supports environmental and product reliability testing for automotive, electrical and electronic, aerospace, maritime, medical, railway, fire, and security applications through its broader testing capabilities.
| Product or industry | Typical evaluation purpose | Quotation information to prepare |
|---|---|---|
| Outdoor lighting, luminaires, and lamps | Assess enclosure resistance to specified water-jet exposure for outdoor-use product development or verification. | Product envelope, mounting orientation, cable entry, sample quantity, and required IP level. |
| Automotive lamps and components | Support environmental and durability evaluation of vehicle lighting or other components exposed to rain and water spray. | Component dimensions, fixtures, test sequence, customer standard, and vehicle-program requirements. |
| Household electrical appliances | Evaluate water ingress resistance of relevant housings or assemblies under the specified test method. | Largest specimen size, weight, operating condition, electrical safety requirements, and drainage needs. |
| Communication and signal equipment | Support ingress protection evaluation of outdoor enclosures, signal devices, and communication products. | Enclosure geometry, connectors, cable routing, test level, and acceptance criteria. |
| Electrical and electronic enclosures | Help R&D and quality teams assess resistance to controlled water-jet exposure before production or market submission. | Applicable standard or customer method, test frequency, sample quantity, fixture design, and site utilities. |
The final chamber configuration should be selected according to the product envelope, test level, test method, sample quantity, drainage requirements, and available utilities. Contact sales@testlabs.my for an application review.
Key Features for Repeatable Water-Jet Testing
Controlled water application: The system is intended to provide repeatable water-jet exposure for IPX5/IPX6 evaluation. Confirm the final nozzle, flow, pressure, spray arrangement, and control range for the selected configuration.
Product-focused chamber layout: The chamber should be selected around the largest specimen dimensions, mounting arrangement, door clearance, drainage, and operator access required for the test method.
Adjustable test sequence: Rain or water application time, interval, and intensity may be configurable depending on the selected control system. Confirm the available functions before presenting them as standard features.
Industrial support: TestLabs provides equipment sales and technical support for customers in Malaysia and Singapore. Warranty, installation, training, spare parts, and on-site service should be stated only according to the quotation or current service commitment.
Customization: Customization can be discussed for sample size, fixtures, utilities, controls, drainage, and site requirements. Request a technical review before finalizing the configuration.
Technical Specifications
| Specification | Published value |
|---|---|
| Packaging dimensions (W × D × H) | 1600 × 1400 × 2000 mm × 2 |
| Power supply | Single-phase, 220 V ±10%, 50/60 Hz; alternative requirements may be appointed |
| Gross weight | 560 kg |
| Primary test purpose | IPX5/IPX6 water-jet ingress protection evaluation; final test configuration must be confirmed against the applicable test method |
Configuration note: Final working dimensions, nozzle or spray arrangement, flow and pressure controls, drainage, fixtures, utilities, control functions, included accessories, installation requirements, warranty, and delivery details must be confirmed in the quotation for the selected configuration.
Configuration and Quotation Requirements
A suitable IPX5/IPX6 chamber depends on the product being tested and the required test method. To prepare a useful quotation, TestLabs needs the specimen type, maximum specimen dimensions, approximate weight, required test level, applicable standard or customer method, sample quantity, power supply at the installation site, drainage or water-recovery requirements, delivery location, and any fixture or control customization.
Frequently Asked Questions
What is an IPX5/IPX6 water-jet test chamber?
An IPX5/IPX6 water-jet test chamber is laboratory equipment used to apply controlled water-jet exposure to a product or enclosure during ingress protection evaluation. The final nozzle, flow, pressure, distance, duration, sample orientation, and acceptance criteria must be confirmed against the applicable test method.
What is the difference between IPX5 and IPX6?
IPX5 and IPX6 are different liquid-protection water-jet test levels within the IP code framework. The exact water conditions and acceptance criteria depend on the applicable edition of IEC 60529 or the customer’s specified test method, so TestLabs should confirm the required configuration before quotation.
Which products can be tested?
The equipment may be considered for outdoor lighting and lamps, automotive lamps and components, household electrical appliances, communication equipment, signal devices, and other electrical or electronic enclosures that require controlled water-jet ingress protection evaluation.
Does the chamber certify my product?
No. The chamber supports controlled testing; it does not automatically grant an IP rating or certification to the product under test. The final result depends on the complete test method, sample and mounting arrangement, test evidence, and any required conformity or certification process.
What information is needed for a quotation?
Send the product type, maximum specimen dimensions, approximate weight, required IP test level, applicable standard or customer method, sample quantity, power supply at the installation site, drainage or water-recovery requirements, delivery location, and any fixture or control customization needs to sales@testlabs.my.
Can TestLabs provide customization and support in Malaysia?
TestLabs can review configuration, customization, installation, training, warranty, and after-sales support requirements for projects in Malaysia and Singapore. Final scope, coverage, and commercial terms should be confirmed in the quotation. Contact sales@testlabs.my or call +6018-2030306.

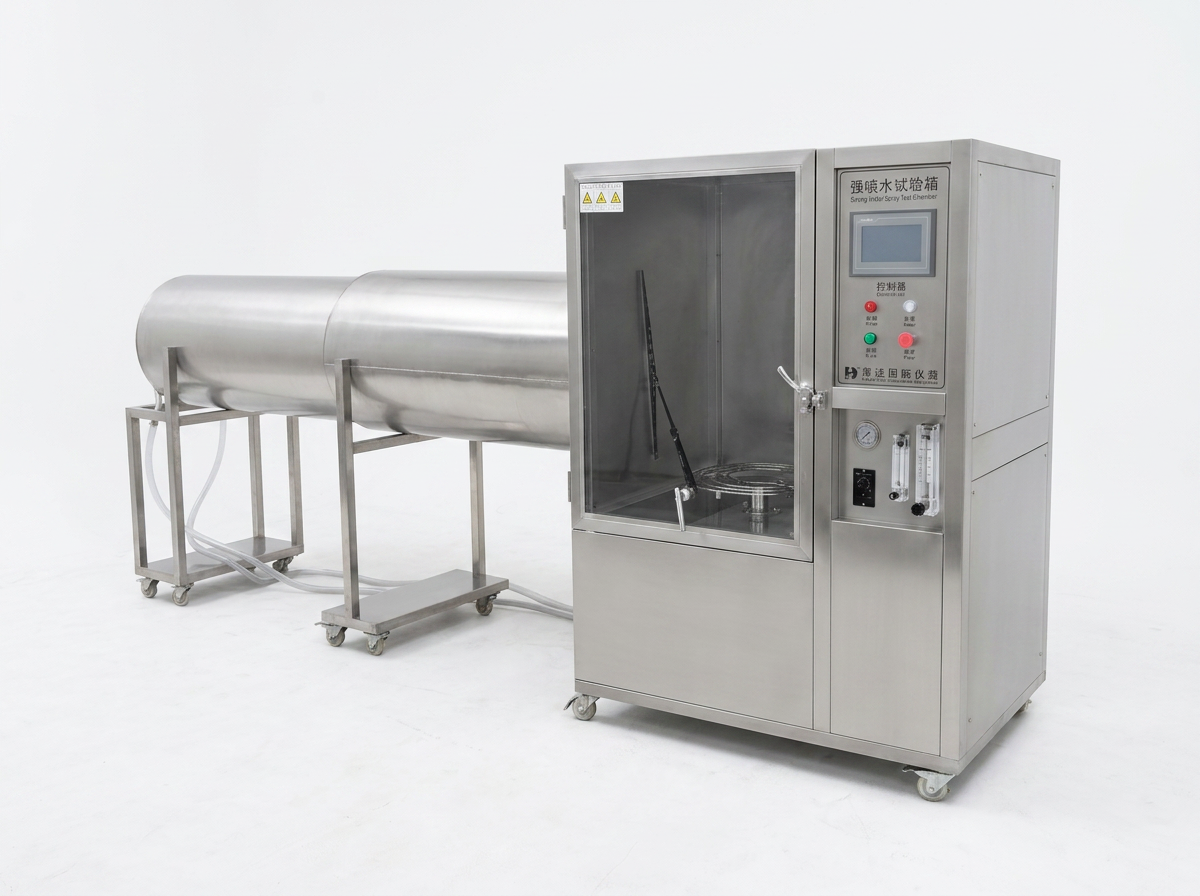

Localized Support for Malaysia's Industrial Hubs
TestLabs supports customers who need environmental and laboratory testing equipment in Malaysia. The current product information includes on-site support within Malaysia, operating training for staff, a one-year manufacturer warranty with service, and an optional two-year warranty arrangement. Online and on-site technical support is also stated for Malaysia and Singapore.
Customers in Kuala Lumpur, Selangor, Penang, Johor, and other Malaysian locations can contact TestLabs for application discussion, chamber selection, quotation, and support planning. Confirm delivery, installation, calibration, maintenance, and any site-specific requirements before purchase so the final scope matches the laboratory’s needs.
Request a Quotation
Tell us what you need to test, purchase, or implement. Please include the product or material, specimen dimensions, approximate weight, required test level, applicable standard or test method.
We will review the information and advise on the next step or the details that still need to be confirmed.
