Temperature Humidity Environment Test Chamber
Programmable Climate Chambers: Certified to IEC & ISO Standards
- Slim and compact design
- Beautiful, reliable and affordable
- Wide and customizable Temperature and Humidity range
- Local support in Malaysia
✳︎
Local Technical Support
✳︎
1 Year Local Warranty
✳︎
Free Training
✳︎ Local Technical Support ✳︎ 1 Year Local Warranty ✳︎ Free Training
Equipment Sales & Technical Supply for Environmental Reliability Testing
An environmental chamber, also called a climatic chamber or climate chamber, is an enclosure used to test the effects of specified environmental conditions on biological items, industrial products, materials, and electronic devices and components.
TestLabs's Temperature Humidity Chambers can simulate the different indicators of constant temperature and humidity climate quickly and accurately for testing products which need to check their performance of temperature testing (-70℃~+150℃), humidity testing (20~98%R.H.), both of temperature and humidity testing at the same time.
Our temperature and Humidity Chamber is designed for detecting the material under a variety of environmental test equipment and performance of a variety of materials heat and cold resistance, dry and wet performance. Suitable for electronic, electrical, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other products quality testing purposes.
Product’s Highlights
-

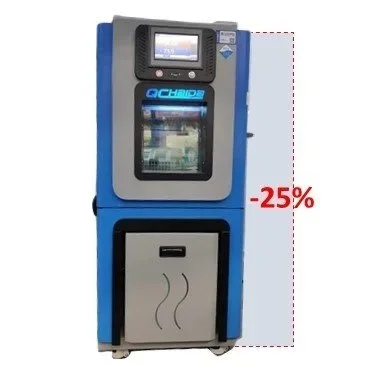

![Climate chamber from Haida, showing a 25% reduce in size]()
Slim and Compact design. The chamber is 15%~25% slimmer than other chambers in market.
-

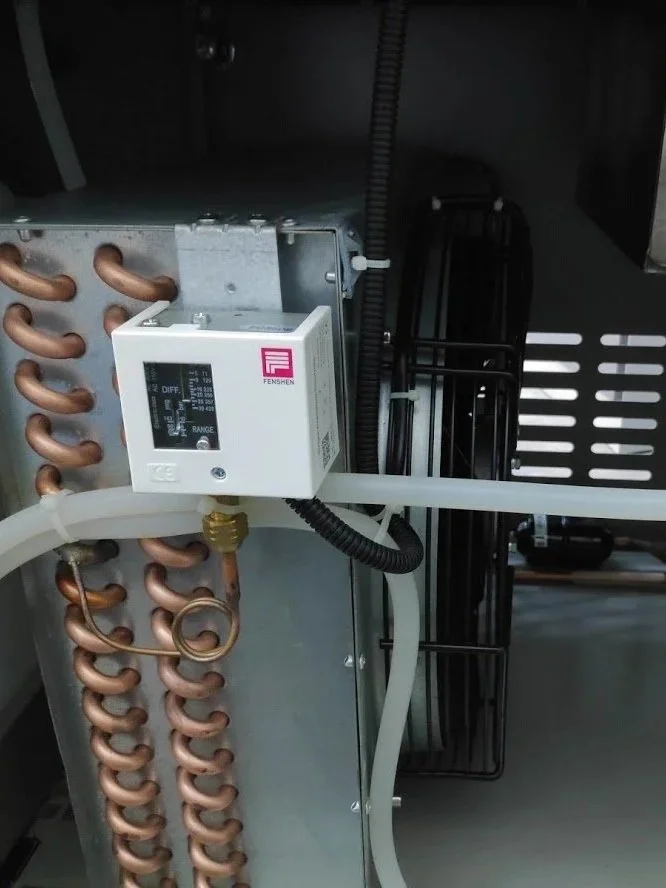

![Close-up of the interior of an HVAC device showing copper refrigerant pipes, a digital control unit, and part of a black fan motor.]()
Low noise refrigeration system and anti-shock system. The chamber is 10% quieter and more stable.
-
![A climate chamber has a glass door showing its interior, where a fan and internal components are visible.]()

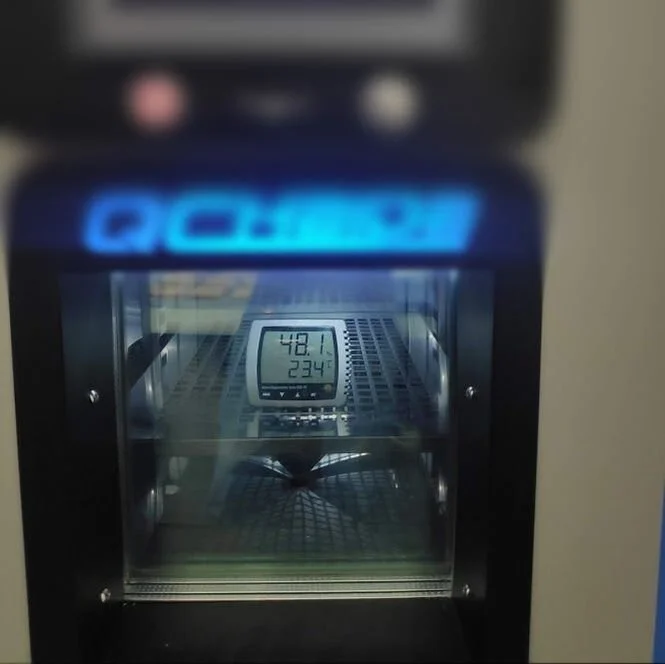

Anti fog window for always clear visibility. 3 layers of vacuum tempered glass. Large window design with built in chamber light. -

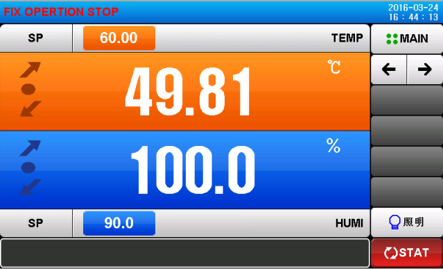

![A digital display showing an operation stop warning at the top, with a set point of 60.00. The current temperature reading is 49.81°C, and the humidity is 100%. Additional settings include a set point of 90.0 for humidity, and the date and time displayed are March 24, 2016, at 4:44 PM.]()
User friendly control system and software. Intelligent programming operating system with graphical patterns. -

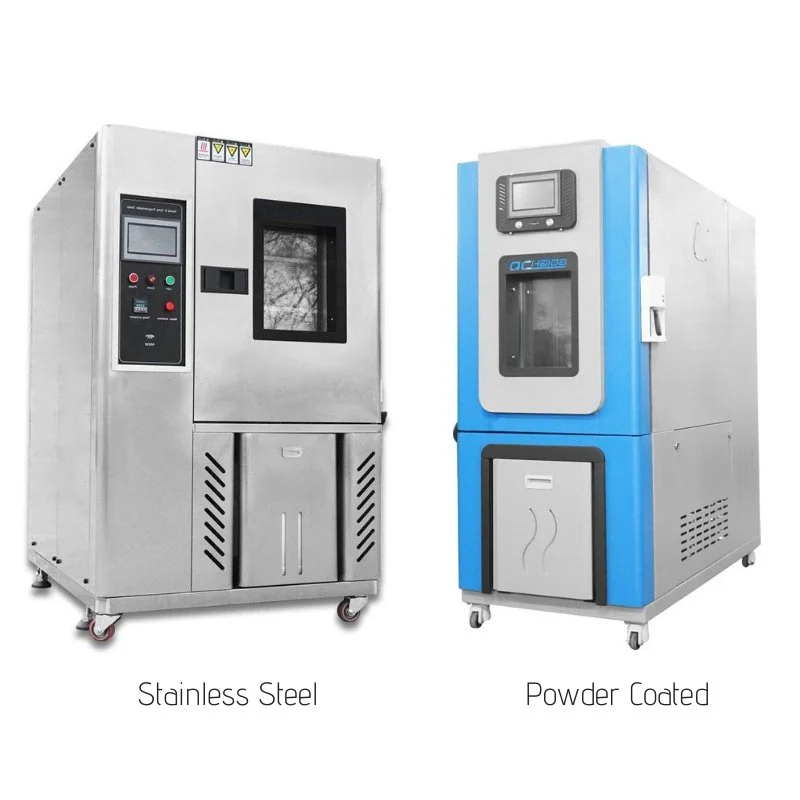

![Comparison of two climate chambers: one labeled 'Stainless Steel' and the other 'Powder Coated' with digital controls and small windows.]()
Selections of Stainless Steel External Chamber or Powder Coated Chamber.
-

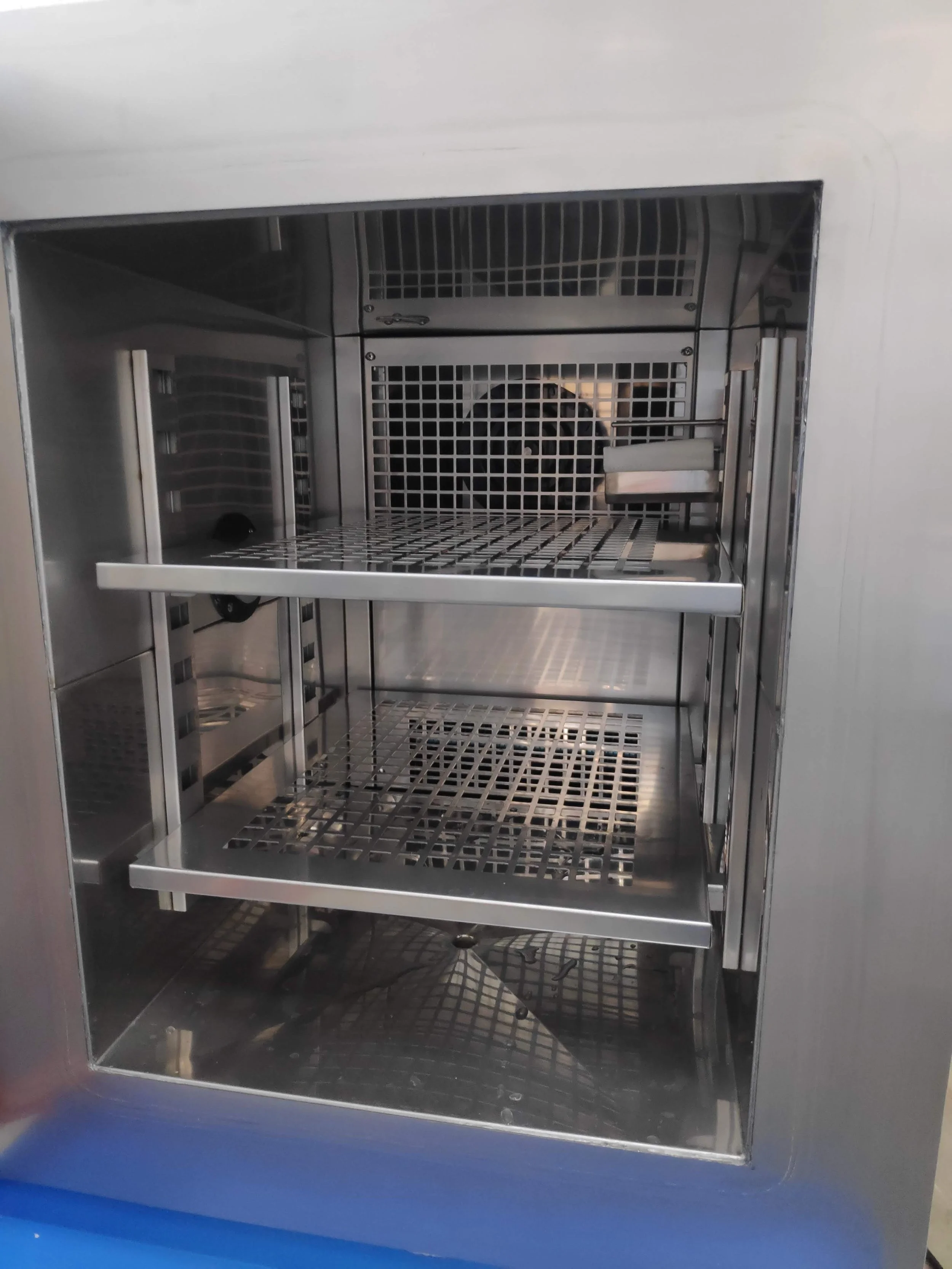

![Empty stainless steel incubator with shelves and ventilation grid.]()
Adjustable stainless steel shelves and 50mm cable test hole
Product Specification
| Parameter | Operational Capability |
|---|---|
| Temperature Range | -70°C to +180°C |
| Humidity Range | 10% to 98% RH |
| Control Stability | ±0.5°C / ±2.5% RH |
| Compliance Specs | IEC 60068-2-1, ISO 16750-4 |
| Cooling Rate | 1°C to 3°C per minute (Customizable) |
| Heating Rate | 3°C to 5°C per minute |
Size and Dimensions
| Model | Capacity | Internal Dimension (W×D×H mm) | External Dimension (W×D×H mm) / Weight |
|---|---|---|---|
| HD-E702-100 | 100L | 450 × 500 × 500 | 600 × 1080 × 1380 / 150 kg |
| HD-E702-150 | 150L | 500 × 500 × 600 | 700 × 1080 × 1480 / 200 kg |
| HD-E702-225 | 225L | 500 × 600 × 750 | 700 × 1180 × 1630 / 300 kg |
| HD-E702-408 | 408L | 600 × 800 × 850 | 800 × 1380 × 1730 / 400 kg |
| HD-E702-800 | 800L | 1000 × 800 × 1000 | 1500 × 1180 × 1900 / 600 kg |
| HD-E702-1000 | 1000L | 1000 × 1000 × 1000 | 1500 × 1380 × 1900 / 700 kg |
Applicable International Testing Standards
Our Temperature Humidity Chambers are fully certified and compliant with the following international standards:
Temperature Cycling & Rapid Rate Testing:
•IEC 60068-2-1 — Cold temperature exposure testing
•IEC 60068-2-2 — Dry heat exposure testing
•IEC 60068-2-14 — Temperature cycling with specified rate of change
•IEC 60068-2-30 — Damp heat cycling (rapid-rate temperature cycle type)
•IEC 61747 (5.2.7) — Liquid crystal and solid-state display device environmental testing with rapid-rate temperature cycling
Combined Temperature & Humidity Testing:
•IEC 60068-2-38 — Composite temperature and humidity cyclic testing
•IEC 60068-2-78 — Damp heat, steady-state testing
Automotive & Transportation Standards:
•ISO 16750-4 (5.3) — Road vehicle environmental testing (temperature cycling)
Our chambers are engineered to support the following critical testing scenarios:
1.Environmental Simulation — Replicate real-world temperature and humidity conditions to test product performance under extreme climatic stress (tropical heat, rapid temperature swings, high humidity).
2.Accelerated Reliability Testing — Compress months or years of environmental exposure into days or weeks, uncovering design weaknesses and material degradation before products reach the market.
3.Cyclic Temperature Testing — Execute precise multi-stage test sequences including holding phases, rapid cooling, heating ramps, moistening cycles, and drying phases — critical for automotive, semiconductor, and electronics reliability qualification.
4.Steady-State Stability Testing — Maintain constant temperature and humidity conditions for extended periods (weeks to months) to evaluate long-term material stability and shelf-life performance, essential for pharmaceutical and chemical products.
5.In-Operation Testing — Test products under load using the integrated cable port with flexible silicone routing, simulating real-world operational conditions within controlled environmental parameters.
Localized Support for Malaysia's Industrial Hubs
We provide direct equipment sales, technical supply, and rapid on-site maintenance for specialized industries across Malaysia:
• Penang: Semiconductor labs and microelectronics wafer fabrication facilities requiring precise steady-state climate chambers.
• Selangor: Automotive component testing and industrial manufacturing QA facilities needing programmable environmental chambers.
• Johor: Heavy manufacturing and electronics assembly hubs demanding reliable temperature humidity testing equipment.
• Kuala Lumpur: Centralized R&D and compliance testing laboratories.
Frequently Asked Questions
Hello, World!
-
A: Our chambers are built for Malaysian industrial standards, utilizing standard 3-phase 415V AC, 50Hz electrical connections. Every installation is supplied with an optional ISO/IEC 17025 accredited calibration certificate, satisfying international QA audit workflowsWe offer a range of solutions designed to meet your needs—whether you're just getting started or scaling something bigger. Everything is tailored to help you move forward with clarity and confidence.
-
A: While both control temperature and humidity, a climate chamber is designed for dynamic testing with rapid temperature changes (e.g., -70°C to +150°C) to stress-test components like electronics or automotive parts. A stability chamber is designed for long-term, steady-state testing (e.g., maintaining 40°C/75% RH for months) typically used in pharmaceutical shelf-life studies (ICH guidelines).
-
A: Chamber sizing depends on your product dimensions, the number of samples tested simultaneously, and the required airflow. We recommend a chamber volume where the test load occupies no more than 30% to 50% of the internal space to ensure proper temperature uniformity and airflow circulation around the samples.
Request a Quotation
Contact us today to explore comprehensive testing solutions tailored to your organization's needs.
